The pavilion angle is a key proportion in diamond cutting, referring to the angle between the girdle plane (the widest part of the diamond) and the pavilion main facets (the facets on the lower half of the diamond). This angle plays a crucial role in determining the diamond’s brilliance, sparkle, and overall visual appeal. A well-cut pavilion angle ensures that light entering the diamond is properly reflected and refracted, resulting in the diamond’s characteristic shine and fire.
Understanding Pavilion Angle and Its Impact on the Diamond
1. What is the Pavilion Angle?

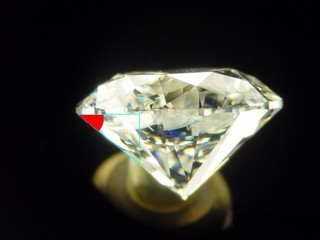

The pavilion angle is the angle formed between the girdle plane and the pavilion facets, which are the large, angled facets located beneath the diamond’s girdle.
This angle controls how light is directed through the diamond, impacting how light is reflected and refracted inside the stone before exiting through the crown (the top portion of the diamond).
Why Pavilion Angle is Crucial for Diamond Quality
1. Light Reflection and Brilliance
The pavilion angle directly affects the diamond’s brilliance, which is the amount of white light that is reflected from the diamond’s facets.
If the pavilion angle is too steep (shallow pavilion), light will pass straight through the bottom of the diamond, resulting in poor light reflection and a loss of brilliance.
Conversely, if the pavilion angle is too shallow, light may not be reflected properly inside the diamond, causing the diamond to appear dull and lacking in sparkle.
A well-angled pavilion helps to direct light back through the top of the diamond, enhancing its brilliance and sparkle.
2. Fire and Dispersion
The pavilion angle also influences the diamond’s fire, or the ability to break up white light into its spectral colors (the rainbow flashes that diamonds are known for).
A correct pavilion angle will allow light to be dispersed in a way that maximizes the diamond’s fire and visual impact, making it more vibrant and colorful. A poorly cut pavilion angle may cause the dispersion to be too weak or distorted, resulting in a less dazzling diamond.
3. Symmetry and Aesthetic Appeal
A well-cut pavilion creates a symmetrical diamond where light is evenly reflected and dispersed from all facets.
Proper symmetry helps the diamond to sparkle evenly from all angles, contributing to a uniform brilliance. Poor pavilion angles can lead to uneven reflections, affecting the diamond’s overall visual appeal.
Ideal Pavilion Angle
The ideal pavilion angle varies slightly based on the diamond shape, but for round brilliant diamonds, the generally accepted ideal pavilion angle is between 40.6° and 41.0°. This range allows the diamond to reflect light efficiently and produce the maximum brilliance and fire.
1. Round Brilliant Cut
For round brilliant diamonds, the pavilion angle should ideally be around 40.6° to 41.0°. This range maximizes the diamond’s light return, ensuring the diamond sparkles and reflects light at its best.
If the angle is too steep (over 41.0°), it may cause the diamond to appear dark or dull. If the angle is too shallow (under 40.6°), the diamond may appear washed out, with less light reflection.
2. Other Fancy Cuts
For diamonds with fancy shapes (e.g., emerald, princess, pear, oval), the pavilion angle may vary slightly due to the differences in facet arrangement and proportions. However, the basic principle remains the same: the pavilion angle should be optimized to allow for efficient light reflection and sparkle.
How to Measure the Pavilion Angle
1. GIA and DCLA Grading Reports
Reputable gemological laboratories like the Gemological Institute of America (GIA) and the Diamond Certification Laboratory of Australia (DCLA) provide cut grades that assess a diamond’s proportions, including the pavilion angle.
In a grading report, the pavilion angle will be listed as part of the overall cut quality of the diamond. For example, GIA’s grading system includes a detailed breakdown of the cut grade, which encompasses the pavilion angle, the crown angle, and the overall symmetry of the diamond.
2. Manual Measurement by a Gemologist
A gemologist can manually measure the pavilion angle using precise instruments such as a protractor or optical tools. However, these measurements are typically already included in the official diamond report from grading labs.
Effects of Incorrect Pavilion Angles
1. Too Shallow Pavilion Angle (Low Angle)
If the pavilion angle is too shallow, typically below 40°, light entering the diamond will pass through the bottom of the stone without reflecting back. This results in a loss of brilliance and a flat appearance.
Shallow pavilion angles can also make the diamond look larger than it actually is, but at the cost of visual performance. The diamond may lack the sparkle and fire that buyers typically expect.
2. Too Steep Pavilion Angle (High Angle)
If the pavilion angle is too steep, typically above 41°, the diamond will reflect light poorly, making the diamond look dark and uninteresting.
A steep pavilion angle can cause light to be reflected out of the sides rather than the top of the diamond, which reduces the stone’s overall brilliance and leads to a dead, dark appearance.
3. Symmetry Issues
A poorly cut pavilion may lead to asymmetry, where the facets don’t line up properly. This can cause irregular light reflection, diminishing the diamond’s overall brilliance and sparkle.
How the Pavilion Angle Affects Diamond Value
1. Influence on Cut Quality
The cut grade is one of the most important factors in determining a diamond’s overall value. A well-cut pavilion that optimizes light performance will result in a higher cut grade, which typically translates to a higher value for the diamond.
A poorly proportioned pavilion angle (either too steep or too shallow) can reduce the diamond’s cut grade, making it less valuable in the market.
2. Impact on Aesthetic Appeal
Diamonds with well-cut pavilions tend to be more brilliant and visually stunning, which makes them more desirable to buyers. A diamond with poor pavilion proportions may appear dull, which can lower its perceived value.
The pavilion angle is a key aspect of diamond cutting that directly influences the diamond’s brilliance, fire, and overall aesthetic appeal. The ideal pavilion angle allows light to be reflected efficiently through the diamond, contributing to its signature sparkle and vibrant rainbow flashes. A properly proportioned pavilion angle is crucial for ensuring the diamond’s visual impact and maximizing its value. When evaluating a diamond, paying attention to the pavilion angle and ensuring that it falls within the ideal range is essential for selecting a diamond that is both stunning and valuable.
